Example: FeedForwardNetwork

This example trains a 2-layer network using 100 training patterns from one nominal and one continuous input attribute. The nominal attribute has three classifications which are encoded using binary encoding. This results in three binary network input columns. The continuous input attribute is scaled to fall in the interval [0,1].

The network training targets were generated using the relationship:

y = 10*X1 + 20*X2 + 30*X3 + 2.0*X4, where

X1-X3 are the three binary columns, corresponding to categories 1-3 of the nominal attribute, and X4 is the scaled continuous attribute.

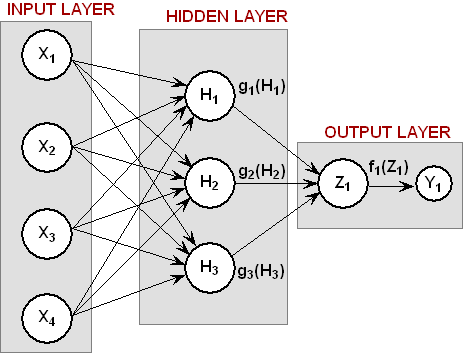

The structure of the network consists of four input nodes and two layers, with three perceptrons in the hidden layer and one in the output layer. The following figure illustrates this structure:

There are a total of 19 weights in this network. The activations functions are all linear. Since the target output is a linear function of the input attributes, linear activation functions guarantee that the network forecasts will exactly match their targets. Of course, this same result could have been obtained using linear multiple regression. Training is conducted using the quasi-newton trainer.

import com.imsl.datamining.neural.*;
import java.io.*;
import java.util.logging.*;

//*****************************************************************************
// Two Layer Feed-Forward Network with 4 inputs: 1 nominal with 3 categories,
// encoded using binary encoding, 1 continuous input attribute, and 1 output
// target (continuous).
// There is a perfect linear relationship between the input and output
// variables:
//
// MODEL:  Y = 10*X1+20*X2+30*X3+2*X4
//
// Variables X1-X3 are the binary encoded nominal variable and X4 is the
// continuous variable.
//*****************************************************************************

public class FeedForwardNetworkEx1 implements Serializable {

// Network Settings
    private FeedForwardNetwork network;
    private static int nObs         =100; // number of training patterns
    private static int nInputs      =  4; // four inputs
    private static int nCategorical =  3; // three categorical attributes
    private static int nContinuous  =  1; // one continuous input attribute
    private static int nOutputs     =  1; // one continuous output
    private static int nLayers      =  2; // number of perceptron layers
    private static int nPerceptrons =  3; // perceptrons in hidden layer
    private static boolean trace    = true; // Turns on/off training log
    private static Activation hiddenLayerActivation = Activation.LINEAR;
    private static Activation outputLayerActivation = Activation.LINEAR;
    private static String errorMsg  = "";
    // Error Status Messages for the Least Squares Trainer
    private static String errorMsg0 =
      "--> Least Squares Training Completed Successfully";
    private static String errorMsg1 =
      "--> Scaled step tolerance was satisfied.  The current solution \n"+
      "may be an approximate local solution, or the algorithm is making\n"+
      "slow progress and is not near a solution, or the Step Tolerance\n"+
      "is too big";
    private static String errorMsg2 =
      "--> Scaled actual and predicted reductions in the function are\n"+
      "less than or equal to the relative function convergence\n"+
      "tolerance RelativeTolerance";
    private static String errorMsg3 =
      "--> Iterates appear to be converging to a noncritical point.\n"+
      "Incorrect gradient information, a discontinuous function,\n"+
      "or stopping tolerances being too tight may be the cause.";
    private static String errorMsg4 =
      "--> Five consecutive steps with the maximum stepsize have\n"+
      "been taken.  Either the function is unbounded below, or has\n"+
      "a finite asymptote in some direction, or the maximum stepsize\n"+
      "is too small.";
    private static String errorMsg5 =
      "--> Too many iterations required";

// categoricalAtt[]: A 2D matrix of values for the categorical training
//                   attribute. In this example, the single categorical
//                   attribute has 3 categories that are encoded using
//                   binary encoding for input into the network.
//                   {1,0,0} = category 1, {0,1,0} = category 2, and
//                   {0,0,1} = category 3.
    private static double categoricalAtt[][] =
      {
      {1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},
      {1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},
      {1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},
      {1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},{1,0,0},

      {0,1,0},{0,1,0},{0,1,0},{0,1,0},{0,1,0},{0,1,0},{0,1,0},{0,1,0},{0,1,0},
      {0,1,0},{0,1,0},{0,1,0},{0,1,0},{0,1,0},{0,1,0},{0,1,0},{0,1,0},{0,1,0},
      {0,1,0},{0,1,0},{0,1,0},{0,1,0},{0,1,0},{0,1,0},{0,1,0},{0,1,0},{0,1,0},
      {0,1,0},{0,1,0},{0,1,0},

      {0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1},
      {0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1},
      {0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1},
      {0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1},{0,0,1}
      };
//
// contAtt[]:  A matrix of values for the continuous training attribute
//
    private static double contAtt[] = {
      4.007054658,7.10028447,4.740350984,5.714553211,6.205437459,
      2.598930065,8.65089967,5.705787357,2.513348184,2.723795955,
      4.1829356,1.93280416,0.332941608,6.745567628,5.593588463,
      7.273544478,3.162117939,4.205381208,0.16414745,2.883418275,
      0.629342241,1.082223406,8.180324708,8.004894314,7.856215418,
      7.797143157,8.350033996,3.778254431,6.964837082,6.13938006,
      0.48610387,5.686627923,8.146173848,5.879852653,4.587492779,
      0.714028533,7.56324211,8.406012623,4.225261454,6.369220241,
      4.432772218,9.52166984,7.935791508,4.557155333,7.976015058,
      4.913538616,1.473658514,2.592338905,1.386872932,7.046051685,
      1.432128376,1.153580985,5.6561491,3.31163251,4.648324851,
      5.042514515,0.657054195,7.958308093,7.557870384,7.901990083,
      5.2363088,6.95582150,8.362167045,4.875903563,1.729229471,
      4.380370223,8.527875685,2.489198107,3.711472959,4.17692681,
      5.844828801,4.825754155,5.642267843,5.339937786,4.440813223,
      1.615143829,7.542969339,8.100542684,0.98625265,4.744819569,
      8.926039258,8.813441887,7.749383991,6.551841576,8.637046998,
      4.560281415,1.386055087,0.778869034,3.883379045,2.364501589,
      9.648737525,1.21754765,3.908879368,4.253313879,9.31189696,
      3.811953836,5.78471629,3.414486452,9.345413015,1.024053777
      };
//
// outs[]:  A 2D matrix containing the training outputs for this network
// In this case there is an exact linear relationship between these
// outputs and the inputs:  outs = 10*X1+20*X2+30*X3+2*X4, where
// X1-X3 are the categorical variables and X4=contAtt
//
    private static double outs[] = {
      18.01410932,24.20056894,19.48070197,21.42910642,22.41087492,
      15.19786013,27.30179934,21.41157471,15.02669637,15.44759191,
      18.3658712,13.86560832,10.66588322,23.49113526,21.18717693,
      24.54708896,16.32423588,18.41076242,10.3282949,15.76683655,
      11.25868448,12.16444681,26.36064942,26.00978863,25.71243084,
      25.59428631,26.70006799,17.55650886,23.92967416,22.27876012,
      10.97220774,21.37325585,26.2923477,21.75970531,19.17498556,
      21.42805707,35.12648422,36.81202525,28.45052291,32.73844048,
      28.86554444,39.04333968,35.87158302,29.11431067,35.95203012,
      29.82707723,22.94731703,25.18467781,22.77374586,34.09210337,
      22.86425675,22.30716197,31.3122982,26.62326502,29.2966497,
      30.08502903,21.31410839,35.91661619,35.11574077,35.80398017,
      30.4726176,33.91164302,36.72433409,29.75180713,23.45845894,
      38.76074045,47.05575137,34.97839621,37.42294592,38.35385362,
      41.6896576,39.65150831,41.28453569,40.67987557,38.88162645,
      33.23028766,45.08593868,46.20108537,31.9725053,39.48963914,
      47.85207852,47.62688377,45.49876798,43.10368315,47.274094,
      39.1205628,32.77211017,31.55773807,37.76675809,34.72900318,
      49.29747505,32.4350953,37.81775874,38.50662776,48.62379392,
      37.62390767,41.56943258,36.8289729,48.69082603,32.04810755
      };
 // **********************************************************************
 // MAIN
 // **********************************************************************
    public static void main(String[] args) throws Exception {

       double weight[];  // network weights
       double gradient[];// network gradient after training
       double x[];       // temporary x space for generating forecasts
       double y[];       // temporary y space for generating forecasts
       double xData[][]; // Input  Attributes for Trainer
       double yData[][]; // Output Attributes for Trainer
       int i, j;         // array indicies
       int nWeights = 0; // Number of weights obtained from network
       String networkFileName = "FeedForwardNetworkEx1.ser";
       String trainerFileName = "FeedForwardTrainerEx1.ser";
       String xDataFileName   = "FeedForwardxDataEx1.ser";
       String yDataFileName   = "FeedForwardyDataEx1.ser";
       String trainLogName    = "FeedForwardTraining.log";
    // **********************************************************************
    // PREPROCESS TRAINING PATTERNS
    // **********************************************************************
       System.out.println("--> Starting Preprocessing of Training Patterns");
       xData = new double[nObs][nInputs];
       yData = new double[nObs][nOutputs];
       for(i=0; i < nObs; i++) {
          for(j=0; j < nCategorical; j++){
             xData[i][j] = categoricalAtt[i][j];
          }
          xData[i][nCategorical] = contAtt[i]/10.0; // Scale continuous input
          yData[i][0] = outs[i];  // outputs are unscaled
       }
    // **********************************************************************
    // CREATE FEEDFORWARD NETWORK
    // **********************************************************************
       System.out.println("--> Creating Feed Forward Network Object");
       FeedForwardNetwork network = new FeedForwardNetwork();
       // setup input layer with number of inputs = nInputs = 4
       network.getInputLayer().createInputs(nInputs);
       // create a hidden layer with nPerceptrons=3 perceptrons
       network.createHiddenLayer().createPerceptrons(nPerceptrons);
       // create output layer with nOutputs=1 output perceptron
       network.getOutputLayer().createPerceptrons(nOutputs);
       // link all inputs and perceptrons to all perceptrons in the next layer
       network.linkAll();
       // Get Network Perceptrons for Setting Their Activation Functions
       Perceptron perceptrons[] = network.getPerceptrons();
       // Set all perceptrons to linear activation
       for (i=0; i < perceptrons.length-1; i++) {
          perceptrons[i].setActivation(hiddenLayerActivation);
       }
       perceptrons[perceptrons.length-1].setActivation(outputLayerActivation);
       System.out.println("--> Feed Forward Network Created with 2 Layers");
    // **********************************************************************
    // TRAIN NETWORK USING QUASI-NEWTON TRAINER
    // **********************************************************************
       System.out.println("--> Training Network using Quasi-Newton Trainer");
       // Create Trainer
       QuasiNewtonTrainer trainer = new QuasiNewtonTrainer();
       // Set Training Parameters
       trainer.setMaximumTrainingIterations(1000);
       // If tracing is requested setup training logger
       if (trace) {
            try {
                Handler handler = new FileHandler(trainLogName);
                Logger logger = Logger.getLogger("com.imsl.datamining.neural");
                logger.setLevel(Level.FINEST);
                logger.addHandler(handler);
                handler.setFormatter(QuasiNewtonTrainer.getFormatter());
                System.out.println("--> Training Log Created in "+
                                   trainLogName);
            } catch (Exception e) {
                System.out.println("--> Cannot Create Training Log.");
            }
        }
       // Train Network
       trainer.train(network, xData, yData);
       // Check Training Error Status
       switch(trainer.getErrorStatus()){
          case 0: errorMsg = errorMsg0;
                  break;
          case 1: errorMsg = errorMsg1;
                  break;
          case 2: errorMsg = errorMsg2;
                  break;
          case 3: errorMsg = errorMsg3;
                  break;
          case 4: errorMsg = errorMsg4;
                  break;
          case 5: errorMsg = errorMsg5;
                  break;
          default:errorMsg = errorMsg0;
       }
       System.out.println(errorMsg);
    // **********************************************************************
    // DISPLAY TRAINING STATISTICS
    // **********************************************************************
       double stats[] = network.computeStatistics(xData, yData);
       // Display Network Errors
       System.out.println("***********************************************");
       System.out.println("--> SSE:                       "+(float)stats[0]);
       System.out.println("--> RMS:                       "+(float)stats[1]);
       System.out.println("--> Laplacian Error:           "+(float)stats[2]);
       System.out.println("--> Scaled Laplacian Error:    "+(float)stats[3]);
       System.out.println("--> Largest Absolute Residual: "+(float)stats[4]);
       System.out.println("***********************************************");
       System.out.println("");
       // **********************************************************************
       // OBTAIN AND DISPLAY NETWORK WEIGHTS AND GRADIENTS
       // **********************************************************************
       System.out.println("--> Getting Network Weights and Gradients");
       // Get weights
       weight   = network.getWeights();
       // Get number of weights = number of gradients
       nWeights = network.getNumberOfWeights();
       // Obtain Gradient Vector
       gradient = trainer.getErrorGradient();
       // Print Network Weights and Gradients
       System.out.println(" ");
       System.out.println("--> Network Weights and Gradients:");
       System.out.println("***********************************************");
       for(i=0; i < nWeights; i++){
          System.out.println("w["+i+"]=" + (float)weight[i]+
                            " g["+i+"]="+(float)gradient[i]);
       }
       System.out.println("***********************************************");
    // **********************************************************************
    // SAVE THE TRAINED NETWORK BY SAVING THE SERIALIZED NETWORK OBJECT
    // **********************************************************************
       System.out.println("\n--> Saving Trained Network into "+
                               networkFileName);
       write(network, networkFileName);
       System.out.println("--> Saving xData into "+
                               xDataFileName);
       write(xData, xDataFileName);
       System.out.println("--> Saving yData into "+
                               yDataFileName);
       write(yData, yDataFileName);
       System.out.println("--> Saving Network Trainer into "+
                               trainerFileName);
       write(trainer, trainerFileName);
    }
// **************************************************************************
// WRITE SERIALIZED NETWORK TO A FILE
// **************************************************************************
    static public void write(Object obj, String filename)
       throws IOException {
       FileOutputStream fos = new FileOutputStream(filename);
       ObjectOutputStream oos = new ObjectOutputStream(fos);
       oos.writeObject(obj);
       oos.close();
       fos.close();
    }
}

Output

--> Starting Preprocessing of Training Patterns
--> Creating Feed Forward Network Object
--> Feed Forward Network Created with 2 Layers
--> Training Network using Quasi-Newton Trainer
--> Training Log Created in FeedForwardTraining.log
--> Least Squares Training Completed Successfully
***********************************************
--> SSE:                       1.013444E-15
--> RMS:                       2.007463E-19
--> Laplacian Error:           3.0058033E-7
--> Scaled Laplacian Error:    3.5352335E-10
--> Largest Absolute Residual: 2.784276E-8
***********************************************

--> Getting Network Weights and Gradients

--> Network Weights and Gradients:
***********************************************
w[0]=-1.4917853 g[0]=-2.6110781E-8
w[1]=-1.4917853 g[1]=-2.6110781E-8
w[2]=-1.4917853 g[2]=-2.6110781E-8
w[3]=1.6169184 g[3]=6.182036E-8
w[4]=1.6169184 g[4]=6.182036E-8
w[5]=1.6169184 g[5]=6.182036E-8
w[6]=4.725622 g[6]=-5.2738493E-8
w[7]=4.725622 g[7]=-5.2738493E-8
w[8]=4.725622 g[8]=-5.2738493E-8
w[9]=6.217407 g[9]=-8.732707E-10
w[10]=6.217407 g[10]=-8.732707E-10
w[11]=6.217407 g[11]=-8.732707E-10
w[12]=1.0722584 g[12]=-1.6909704E-7
w[13]=1.0722584 g[13]=-1.6909704E-7
w[14]=1.0722584 g[14]=-1.6909704E-7
w[15]=3.8507552 g[15]=-1.7028917E-8
w[16]=3.8507552 g[16]=-1.7028917E-8
w[17]=3.8507552 g[17]=-1.7028917E-8
w[18]=2.4117248 g[18]=-1.5881357E-8
***********************************************

--> Saving Trained Network into FeedForwardNetworkEx1.ser
--> Saving xData into FeedForwardxDataEx1.ser
--> Saving yData into FeedForwardyDataEx1.ser
--> Saving Network Trainer into FeedForwardTrainerEx1.ser
Link to Java source.
