Example: Stacked Bar Chart
A stacked bar chart is constructed in this example. Bar labels and colors are set and axis labels are set.
using Imsl.Chart2D;
using System;
using System.Windows.Forms;
public class BarEx1 : FrameChart
{
public BarEx1()
{
Chart chart = this.Chart;
AxisXY axis = new AxisXY(chart);
int nStacks = 2;
int nGroups = 3;
int nItems = 6;
// Generate some random data
Imsl.Stat.Random r = new Imsl.Stat.Random(123457);
double[] dbl = new double[50];
dbl[0]=0.41312962995625035;
dbl[1]=0.15995876895053263;
dbl[2]=0.8225528716547005;
dbl[3]=0.48794367683379836;
dbl[4]=0.44364905186692527;
dbl[5]=0.20896329070872555;
dbl[6]=0.9887088342522812;
dbl[7]=0.4781765623804778;
dbl[8]=0.9647868112234352;
dbl[9]=0.6732389937186418;
dbl[10]=0.5668831243079411;
dbl[11]=0.33081942994459734;
dbl[12]=0.27386697614898103;
dbl[13]=0.10880787186704965;
dbl[14]=0.8805853693809824;
dbl[15]=0.901138442534768;
dbl[16]=0.7180829622748057;
dbl[17]=0.48723656383264413;
dbl[18]=0.6153607537410654;
dbl[19]=0.10153552805288812;
dbl[20]=0.3158193853638753;
dbl[21]=0.9558058275075961;
dbl[22]=0.10778543304578747;
dbl[23]=0.011829287599608884;
dbl[24]=0.09275375134615693;
dbl[25]=0.4859902873228249;
dbl[26]=0.9817642781628322;
dbl[27]=0.5505301300240635;
dbl[28]=0.467363186309925;
dbl[29]=0.18652444274911184;
dbl[30]=0.9066980293517674;
dbl[31]=0.9272326533193322;
dbl[32]=0.31440695305815347;
dbl[33]=0.4215880116306273;
dbl[34]=0.9991560762956562;
dbl[35]=0.0386317648903991;
dbl[36]=0.785150345014761;
dbl[37]=0.6451521871931544;
dbl[38]=0.7930129038729785;
dbl[39]=0.819301055474355;
dbl[40]=0.5695413465811706;
dbl[41]=0.039285689951912395;
dbl[42]=0.7625752595574732;
dbl[43]=0.31325564481720314;
dbl[44]=0.0482465474704169;
dbl[45]=0.6272275622766595;
dbl[46]=0.09904819350827354;
dbl[47]=0.8934533907186641;
dbl[48]=0.7013979421419555;
dbl[49]=0.5212913217641422;
int z=0;
double[] x = new double[nItems];
double[][][] y = new double[nStacks][][];
for (int i = 0; i < nStacks; i++)
{
y[i] = new double[nGroups][];
for (int i2 = 0; i2 < nGroups; i2++)
{
y[i][i2] = new double[nItems];
}
}
double dx = 0.5 * System.Math.PI / (x.Length - 1);
for (int istack = 0; istack < y.Length; istack++)
{
for (int jgroup = 0; jgroup < y[istack].Length; jgroup++)
{
for (int kitem = 0; kitem < y[istack][jgroup].Length; kitem++)
{
y[istack][jgroup][kitem] = dbl[z];//r.NextDouble();
z++;
}
}
}
// Create an instance of a Bar Chart
Bar bar = new Bar(axis, y);
// Set the Bar Chart Title
chart.ChartTitle.SetTitle("Sales by Region");
// Set the fill outline type;
bar.FillOutlineType = Bar.FILL_TYPE_SOLID;
System.Drawing.Color GREEN = System.Drawing.Color.FromArgb(0, 255, 0);
// Set the Bar Item fill colors
bar.GetBarSet(0, 0).FillColor = System.Drawing.Color.Red;
bar.GetBarSet(0, 1).FillColor = System.Drawing.Color.Yellow;
bar.GetBarSet(0, 2).FillColor = GREEN;
bar.GetBarSet(1, 0).FillColor = System.Drawing.Color.Blue;
bar.GetBarSet(1, 1).FillColor = System.Drawing.Color.Cyan;
bar.GetBarSet(1, 2).FillColor = System.Drawing.Color.Magenta;
chart.Legend.IsVisible = true;
bar.GetBarSet(0, 0).SetTitle("Red");
bar.GetBarSet(0, 1).SetTitle("Yellow");
bar.GetBarSet(0, 2).SetTitle("Green");
bar.GetBarSet(1, 0).SetTitle("Blue");
bar.GetBarSet(1, 1).SetTitle("Cyan");
bar.GetBarSet(1, 2).SetTitle("Magenta");
// Setup the vertical axis for a labeled bar chart.
System.String[] labels = new System.String[]{"New York", "Texas",
"Northern\nCalifornia", "Southern\nCalifornia", "Colorado",
"New Jersey"};
bar.SetLabels(labels, Imsl.Chart2D.Bar.BAR_TYPE_VERTICAL);
// Set the text angle
axis.AxisX.AxisLabel.TextAngle = 270;
// Set the Y axis title
axis.AxisY.AxisTitle.SetTitle("Sales ($million)\nby " + "widget color");
}
public static void Main(string[] argv)
{
System.Windows.Forms.Application.Run(new BarEx1());
}
}

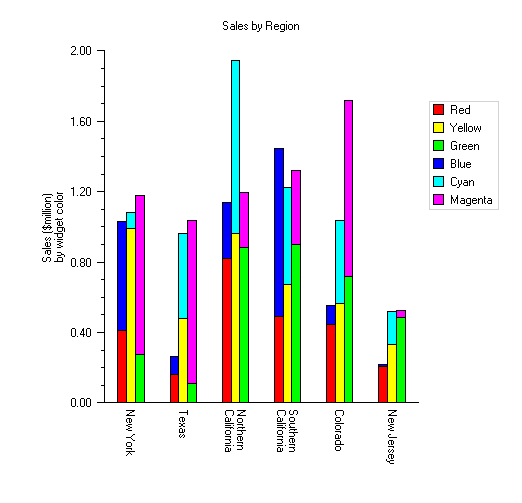

Output
Link to C# source.
