Example: Dendrogram

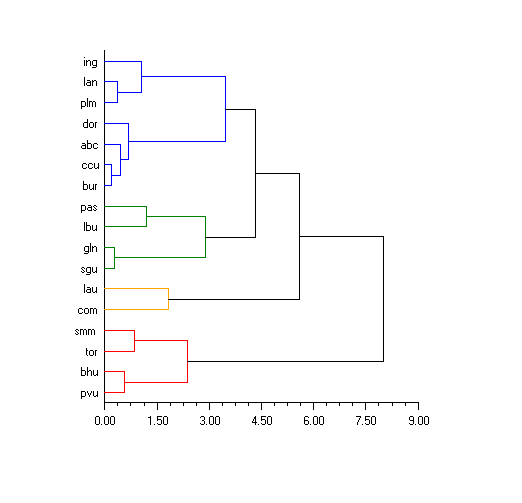

A Dendrogram.
using Imsl.Chart2D;
using Imsl.Stat;
using System;
using System.Windows.Forms;
using System.Drawing;
public class DendrogramEx1 : FrameChart
{
public DendrogramEx1()
{
Chart chart = this.Chart;
AxisXY axis = new AxisXY(chart);
double[,] data = {{.38, 626.5, 601.3, 605.3},
{.18, 654.0, 647.1, 641.8},
{.07, 677.2, 676.5, 670.5},
{.09, 639.9, 640.3, 636.0},
{.19, 614.7, 617.3, 606.2},
{.12, 670.2, 666.0, 659.3},
{.20, 651.1, 645.2, 643.4},
{.41, 645.4, 645.8, 644.8},
{.07, 683.5, 682.9, 674.3},
{.39, 648.6, 647.8, 643.1},
{.21, 650.4, 650.8, 643.9},
{.24, 637.0, 636.9, 626.5},
{.09, 641.1, 628.8, 629.4},
{.12, 638.0, 627.7, 628.6},
{.11, 661.4, 659.0, 651.8},
{.22, 646.4, 646.2, 647.0},
{.33, 634.1, 632.0, 627.8}};
System.String[] lab = new System.String[]{"lau", "ccu", "bhu", "ing",
"com", "smm", "bur", "gln", "pvu", "sgu", "abc", "pas", "lan", "plm",
"tor", "dor", "lbu"};
Dissimilarities dist = new Dissimilarities(data, 0, 1, 1);
double[,] distanceMatrix = dist.DistanceMatrix;
ClusterHierarchical clink = new ClusterHierarchical(
dist.DistanceMatrix, 4, 0);
int nClusters = 4;
int[] iclus = clink.GetClusterMembership(nClusters);
int[] nclus = clink.GetObsPerCluster(nClusters);
// use either method below to create the chart
Dendrogram dc = new Dendrogram(axis, clink,
Data.DENDROGRAM_TYPE_HORIZONTAL);
dc.SetLabels(lab);
dc.SetLineColors(new Color[] {Color.Blue, Color.Green, Color.Red,
Color.Orange});
}
public static void Main(string[] argv)
{
System.Windows.Forms.Application.Run(new DendrogramEx1());
}
}
