Example: Heatmap from Color array
A 5 by 10 array of Color
objects is created by linearly interpolating red along the x-axis, blue along the y-axis and mixing in a random amount of green. The data range is set to [0,10] by [0,1].
using Imsl.Chart2D;
using System;
using System.Windows.Forms;
public class HeatmapEx1 : FrameChart
{
public HeatmapEx1()
{
Chart chart = this.Chart;
AxisXY axis = new AxisXY(chart);
double xmin = 0.0;
double xmax = 10.0;
double ymin = 0.0;
double ymax = 1.0;
int nxRed = 5;
int nyBlue = 10;
System.Random random = new System.Random((System.Int32) 123457L);
System.Drawing.Color[,] color = new System.Drawing.Color[nxRed,nyBlue];
int z=0;
int []d=new int[50];
d[0]=34;
d[1]=212;
d[2]=122;
d[3]=86;
d[4]=165;
d[5]=62;
d[6]=195;
d[7]=161;
d[8]=103;
d[9]=155;
d[10]=104;
d[11]=163;
d[12]=217;
d[13]=252;
d[14]=13;
d[15]=97;
d[16]=104;
d[17]=74;
d[18]=65;
d[19]=248;
d[20]=189;
d[21]=195;
d[22]=105;
d[23]=191;
d[24]=237;
d[25]=28;
d[26]=234;
d[27]=67;
d[28]=172;
d[29]=146;
d[30]=129;
d[31]=2;
d[32]=228;
d[33]=162;
d[34]=235;
d[35]=177;
d[36]=109;
d[37]=251;
d[38]=215;
d[39]=243;
d[40]=106;
d[41]=154;
d[42]=22;
d[43]=65;
d[44]=101;
d[45]=192;
d[46]=103;
d[47]=28;
d[48]=32;
d[49]=143;
for (int i = 0; i < nxRed; i++)
{
for (int j = 0; j < nyBlue; j++)
{
int r = (int) (255.0 * i / nxRed);
//
int g =d[z];
z++;
int b = (int) (255.0 * j / nyBlue);
color[i,j] = System.Drawing.Color.FromArgb(r, g, b);
}
}
Heatmap heatmap = new Heatmap(axis, xmin, xmax, ymin, ymax, color);
axis.AxisX.AxisTitle.SetTitle("Red");
axis.AxisY.AxisTitle.SetTitle("Blue");
}
public static void Main(string[] argv)
{
System.Windows.Forms.Application.Run(new HeatmapEx1());
}
}

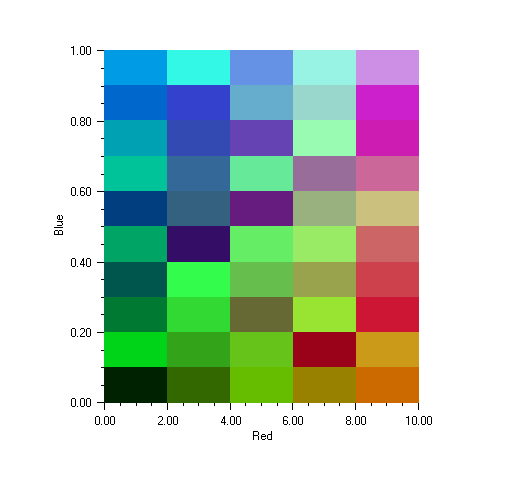

Output
Link to C# source.
