Example: Heatmap from Color array

A 5 by 10 data array is created by linearly interpolating from the lower left corner to the upper right corner and adding in a uniform random variable. A red temperature color map is used. This maps the minimum data value to light green and the maximum data value to dark green.

The legend is enabled by setting its paint attribute to true.

using Imsl.Chart2D;
using System;
using System.Windows.Forms;

public class HeatmapEx2 : FrameChart
{
	public HeatmapEx2()
	{
		Chart chart = this.Chart;

		AxisXY axis = new AxisXY(chart);

		int nx = 5;
		int ny = 10;
		double xmin = 0.0;
		double xmax = 10.0;
		double ymin = - 3.0;
		double ymax = 2.0;
		double fmax = nx + ny - 1;

		double[,] data = new double[nx,ny];

		System.Random random = new System.Random((System.Int32) 123457L);

		double[] dbl = new double[50];
		dbl[0]=0.41312962995625035;
		dbl[1]=0.15995876895053263;
		dbl[2]=0.8225528716547005;
		dbl[3]=0.48794367683379836;
		dbl[4]=0.44364905186692527;
		dbl[5]=0.20896329070872555;
		dbl[6]=0.9887088342522812;
		dbl[7]=0.4781765623804778;
		dbl[8]=0.9647868112234352;
		dbl[9]=0.6732389937186418;
		dbl[10]=0.5668831243079411;
		dbl[11]=0.33081942994459734;
		dbl[12]=0.27386697614898103;
		dbl[13]=0.10880787186704965;
		dbl[14]=0.8805853693809824;
		dbl[15]=0.901138442534768;
		dbl[16]=0.7180829622748057;
		dbl[17]=0.48723656383264413;
		dbl[18]=0.6153607537410654;
		dbl[19]=0.10153552805288812;
		dbl[20]=0.3158193853638753;
		dbl[21]=0.9558058275075961;
		dbl[22]=0.10778543304578747;
		dbl[23]=0.011829287599608884;
		dbl[24]=0.09275375134615693;
		dbl[25]=0.4859902873228249;
		dbl[26]=0.9817642781628322;
		dbl[27]=0.5505301300240635;
		dbl[28]=0.467363186309925;
		dbl[29]=0.18652444274911184;
		dbl[30]=0.9066980293517674;
		dbl[31]=0.9272326533193322;
		dbl[32]=0.31440695305815347;
		dbl[33]=0.4215880116306273;
		dbl[34]=0.9991560762956562;
		dbl[35]=0.0386317648903991;
		dbl[36]=0.785150345014761;
		dbl[37]=0.6451521871931544;
		dbl[38]=0.7930129038729785;
		dbl[39]=0.819301055474355;
		dbl[40]=0.5695413465811706;
		dbl[41]=0.039285689951912395;
		dbl[42]=0.7625752595574732;
		dbl[43]=0.31325564481720314;
		dbl[44]=0.0482465474704169;
		dbl[45]=0.6272275622766595;
		dbl[46]=0.09904819350827354;
		dbl[47]=0.8934533907186641;
		dbl[48]=0.7013979421419555;
		dbl[49]=0.5212913217641422;

		int z=0;
		for (int i = 0; i < nx; i++)
		{
			for (int j = 0; j < ny; j++)
			{
				data[i,j] = i + j + dbl[z];
				z++;
			}
		}
		Heatmap heatmap = new Heatmap(axis, xmin, xmax, ymin, ymax, 0.0, fmax,
         data, Imsl.Chart2D.Colormap_Fields.RED_TEMPERATURE);
		heatmap.HeatmapLegend.IsVisible = true;
		heatmap.HeatmapLegend.SetTitle("Heat");
	}

	public static void Main(string[] argv)
	{
		System.Windows.Forms.Application.Run(new HeatmapEx2());
	}
}

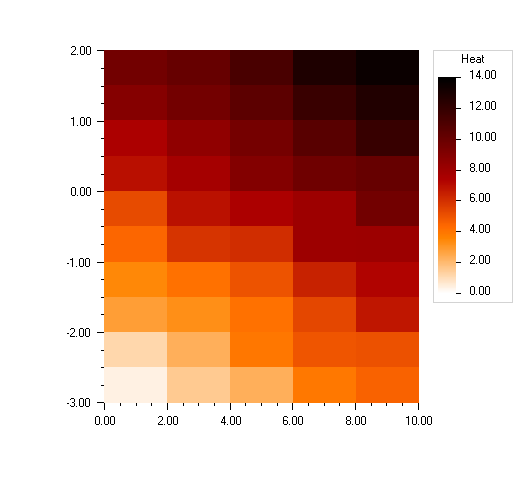

Output

Link to C# source.
