Example: Heatmap with Labels

A 5 by 10 array of random data is created and a similarly sized array of strings is also created. These labels contain spreadsheet-like indices and the random data value expressed as a percentage.

The legend is enabled by setting its paint attribute to true. The tick marks in the legend are formatted using the percentage NumberFormat object. A title is also set in the legend.

using Imsl.Chart2D;
using System;
using System.Windows.Forms;

public class HeatmapEx3 : FrameChart
{
	public HeatmapEx3()
	{
		Chart chart = this.Chart;

		AxisXY axis = new AxisXY(chart);

		double xmin = 0.0;
		double xmax = 10.0;
		double ymin = 0.0;
		double ymax = 1.0;

		int nx = 5;
		int ny = 10;
		double[,] data = new double[nx,ny];

		System.String[,] labels = new System.String[nx,ny];
		System.Random random = new System.Random((System.Int32) 123457L);

		double[] dbl = new double[50];
		dbl[0]=0.41312962995625035;
		dbl[1]=0.15995876895053263;
		dbl[2]=0.8225528716547005;
		dbl[3]=0.48794367683379836;
		dbl[4]=0.44364905186692527;
		dbl[5]=0.20896329070872555;
		dbl[6]=0.9887088342522812;
		dbl[7]=0.4781765623804778;
		dbl[8]=0.9647868112234352;
		dbl[9]=0.6732389937186418;
		dbl[10]=0.5668831243079411;
		dbl[11]=0.33081942994459734;
		dbl[12]=0.27386697614898103;
		dbl[13]=0.10880787186704965;
		dbl[14]=0.8805853693809824;
		dbl[15]=0.901138442534768;
		dbl[16]=0.7180829622748057;
		dbl[17]=0.48723656383264413;
		dbl[18]=0.6153607537410654;
		dbl[19]=0.10153552805288812;
		dbl[20]=0.3158193853638753;
		dbl[21]=0.9558058275075961;
		dbl[22]=0.10778543304578747;
		dbl[23]=0.011829287599608884;
		dbl[24]=0.09275375134615693;
		dbl[25]=0.4859902873228249;
		dbl[26]=0.9817642781628322;
		dbl[27]=0.5505301300240635;
		dbl[28]=0.467363186309925;
		dbl[29]=0.18652444274911184;
		dbl[30]=0.9066980293517674;
		dbl[31]=0.9272326533193322;
		dbl[32]=0.31440695305815347;
		dbl[33]=0.4215880116306273;
		dbl[34]=0.9991560762956562;
		dbl[35]=0.0386317648903991;
		dbl[36]=0.785150345014761;
		dbl[37]=0.6451521871931544;
		dbl[38]=0.7930129038729785;
		dbl[39]=0.819301055474355;
		dbl[40]=0.5695413465811706;
		dbl[41]=0.039285689951912395;
		dbl[42]=0.7625752595574732;
		dbl[43]=0.31325564481720314;
		dbl[44]=0.0482465474704169;
		dbl[45]=0.6272275622766595;
		dbl[46]=0.09904819350827354;
		dbl[47]=0.8934533907186641;
		dbl[48]=0.7013979421419555;
		dbl[49]=0.5212913217641422;

		int z=0;
		for (int i = 0; i < nx; i++)
		{
			for (int j = 0; j < ny; j++)
			{
				data[i,j] = dbl[z];//random.NextDouble();
				z++;
				labels[i,j] = "ABCDE"[i] + System.Convert.ToString(j) + "\n" +
               data[i,j].ToString("P0");
			}
		}
		Heatmap heatmap = new Heatmap(axis, xmin, xmax, ymin, ymax, 0.0, 1.0,
         data, Imsl.Chart2D.Colormap_Fields.BLUE);
		heatmap.SetHeatmapLabels(labels);
		heatmap.TextColor =  System.Drawing.Color.FromName("orange");
		heatmap.HeatmapLegend.IsVisible = true;
		heatmap.HeatmapLegend.TextFormat = "P0";
		heatmap.HeatmapLegend.SetTitle("Percentage");
	}

	public static void Main(string[] argv)
	{
		System.Windows.Forms.Application.Run(new HeatmapEx3());
	}
}

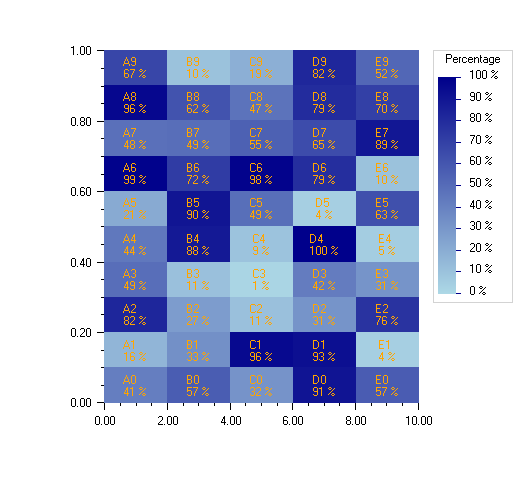

Output
