Example: XbarS Chart
During a manufacturing process 15 samples, each containing 12 items, were measured. An XbarS chart was contructed from the 15 sample standard deviations.
using Imsl.Chart2D;
using Imsl.Chart2D.QC;
using System;
public class XbarSEx1 : FrameChart
{
static private readonly double[][] data = {
new double[]{23.97, 24.08, 23.16, 23.49, 24.73, 25.26, 22.97, 23.12, 24.66,
24.20, 24.62, 24.56},
new double[]{24.20, 24.50, 23.45, 22.22, 25.10, 24.41, 24.05, 23.75, 23.89,
24.83, 25.21, 23.70},
new double[]{23.73, 22.70, 23.54, 24.37, 24.08, 23.74, 24.08, 23.95, 24.20,
23.43, 24.26, 23.61},
new double[]{23.46, 23.14, 23.96, 23.37, 23.73, 24.29, 24.13, 23.62, 24.08,
23.73, 23.91, 23.65},
new double[]{23.95, 24.13, 22.95, 24.72, 24.40, 22.82, 22.66, 22.71, 24.21,
23.39, 23.41, 22.56},
new double[]{24.13, 24.28, 23.84, 24.55, 23.53, 23.77, 24.38, 22.58, 24.47,
23.63, 22.64, 24.12},
new double[]{23.69, 24.19, 24.76, 23.29, 24.84, 24.12, 23.83, 22.60, 24.35,
22.96, 23.81, 23.46},
new double[]{24.35, 23.11, 25.24, 24.10, 24.93, 22.93, 23.47, 23.55, 23.91,
24.08, 22.45, 24.13},
new double[]{24.98, 24.58, 23.52, 24.42, 23.90, 23.55, 23.67, 24.25, 23.85,
23.08, 23.44, 23.43},
new double[]{23.90, 24.04, 24.29, 23.62, 23.29, 23.16, 24.34, 24.37, 24.19,
24.33, 22.17, 23.66},
new double[]{23.51, 24.98, 24.34, 23.87, 23.29, 23.96, 23.06, 23.47, 23.53,
22.87, 23.38, 22.86},
new double[]{23.13, 23.17, 23.40, 23.68, 23.41, 23.67, 23.37, 24.40, 24.64,
24.16, 24.17, 23.88},
new double[]{23.52, 24.23, 24.25, 24.31, 23.89, 24.02, 24.04, 23.83, 22.82,
23.93, 23.55, 23.40},
new double[]{23.66, 23.59, 23.79, 24.07, 23.76, 23.34, 23.65, 23.73, 25.12,
23.65, 23.23, 23.13},
new double[]{23.04, 23.75, 22.84, 23.46, 21.72, 23.81, 24.51, 24.01, 24.73,
23.88, 23.34, 24.98}
};
public XbarSEx1()
{
XbarS.CreateCharts(this.Chart, data);
}
public static void Main(string[] argv)
{
System.Windows.Forms.Application.Run(new XbarSEx1());
}
}

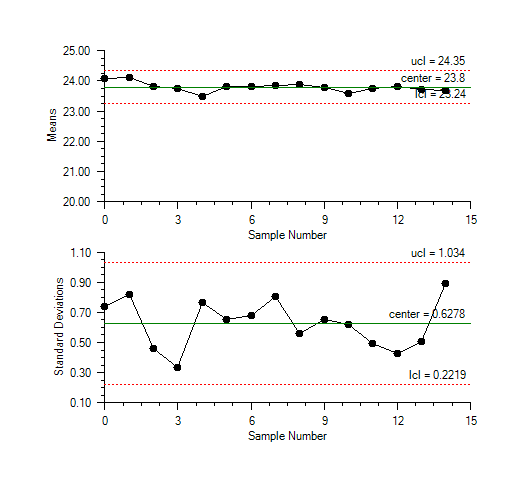

Output
Link to C# source.
