Example: Moving Range Chart
This moving range chart plots the flowrate for 10 batches. The data is from NIST Engineering Statistics Handbook: Individuals Control Charts
.
using Imsl.Chart2D;
using Imsl.Chart2D.QC;
using System;
public class XmREx1 : FrameChart
{
static private readonly double[] flowrate = {
49.6, 47.6, 49.9, 51.3, 47.8, 51.2, 52.6, 52.4, 53.6, 52.1
};
public XmREx1()
{
AxisXY axis = new AxisXY(this.Chart);
XmR mr = new XmR(axis, flowrate);
}
public static void Main(string[] argv)
{
System.Windows.Forms.Application.Run(new XmREx1());
}
}

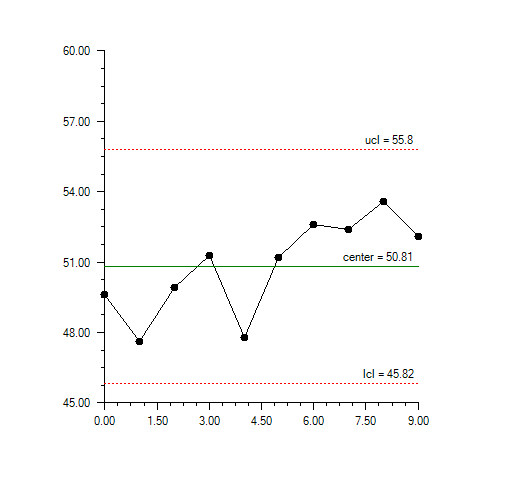

Output
Link to C# source.
