Example: Scatter Chart

A scatter plot is constructed in this example. Three data sets are used and a legend is added to the chart.
using Imsl.Chart2D;
using System;
using System.Windows.Forms;

public class ScatterEx1 : FrameChart
{
	public ScatterEx1()
	{
		Chart chart = this.Chart;
		AxisXY axis = new AxisXY(chart);

		int npoints = 20;
		double dx = .5 * System.Math.PI / (npoints - 1);
		double[] x = new double[npoints];
		double[] y1 = new double[npoints];
		double[] y2 = new double[npoints];
		double[] y3 = new double[npoints];

		//	Generate some data
		for (int i = 0; i < npoints; i++)
		{
			x[i] = i * dx;
			y1[i] = System.Math.Sin(x[i]);
			y2[i] = System.Math.Cos(x[i]);
			y3[i] = System.Math.Atan(x[i]);
		}
		Data d1 = new Data(axis, x, y1);
		Data d2 = new Data(axis, x, y2);
		Data d3 = new Data(axis, x, y3);

		//	Set Data Type to Marker
		d1.DataType = Imsl.Chart2D.Data.DATA_TYPE_MARKER;
		d2.DataType = Imsl.Chart2D.Data.DATA_TYPE_MARKER;
		d3.DataType = Imsl.Chart2D.Data.DATA_TYPE_MARKER;

		//	Set Marker Types
		d1.MarkerType = Data.MARKER_TYPE_CIRCLE_PLUS;
		d2.MarkerType = Data.MARKER_TYPE_HOLLOW_SQUARE;
		d3.MarkerType = Data.MARKER_TYPE_ASTERISK;

		//	Set Marker Colors
		d1.MarkerColor = System.Drawing.Color.Red;
		d2.MarkerColor = System.Drawing.Color.Black;
		d3.MarkerColor = System.Drawing.Color.Blue;

		//	Set Data Labels
		d1.SetTitle("Sine");
		d2.SetTitle("Cosine");
		d3.SetTitle("ArcTangent");

		//	Add a Legend
		Legend legend = chart.Legend;
		legend.SetTitle(new Text("Legend"));
		chart.AddLegendItem(2, chart);
		legend.IsVisible = true;

		//	Set the Chart Title
		chart.ChartTitle.SetTitle("Scatter Plot");
	}

	public static void Main(string[] argv)
	{
		System.Windows.Forms.Application.Run(new ScatterEx1());
	}
}

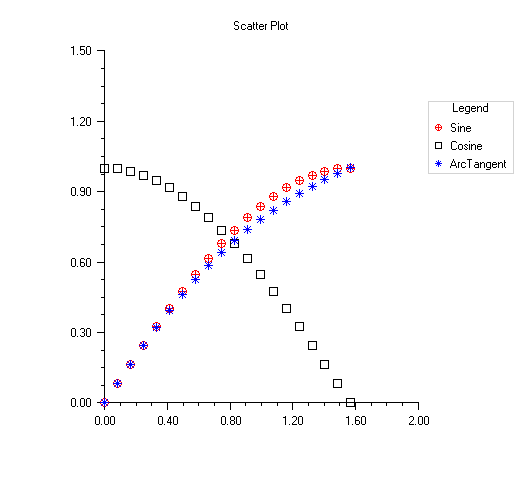

Output

Link to C# source.
